Choosing highway safety systems is not a catalog exercise. It is a project decision shaped by speed, road geometry, traffic mix, roadside hazards, and maintenance capacity. A barrier suited to a divided highway may be wrong for a narrow shoulder or a sharp curve. A crash cushion must fit the hazard it protects and leave crews room to inspect it. Small details matter.
Dutch traffic engineer Hans Monderman is often quoted as saying, “If you treat people like idiots, they will behave like idiots.” His point offers a useful reminder: safety design should account for how people actually use roads, not assume perfect behavior. For project teams, that means examining where vehicles leave the roadway, what they could strike, and how a system performs during impact. It also means asking whether signs, supports, barriers, and terminals work together rather than evaluating each item alone.
This guide introduces practical ways to compare highway safety systems, from site assessment and performance evidence to installation and upkeep. Look closely at tested configurations, compatible components, replacement needs, and applicable project requirements. A low purchase price can hide difficult repairs or repeated closures. Yet the most robust option is not automatically the best fit. Project conditions differ, and available evidence may not answer every question. A careful selection records both the reasons for a choice and the uncertainties that remain. One overlooked constraint can matter.
Define the project before comparing barriers, signs, or warning devices. Map the limits, road type, operating speed, and nearby hazards. Mark steep slopes, drainage culverts, bridge ends, and places where vehicles frequently leave the roadway. Map the risk. Use several years of crash records, but check them against current traffic patterns and field observations; reported crashes alone can miss near-misses and changing conditions.
Set a measurable objective, such as reducing fatal and serious-injury crashes or protecting pedestrians near a crossing.
NHTSA’s Traffic Safety Facts: Pedestrians, 2022 Data reports 7,522 pedestrian deaths in U.S. traffic crashes that year. That figure does not describe every project, but it reinforces the need to identify who uses the corridor.
FHWA’s Highway Safety Improvement Program guidance supports using crash data to identify safety needs and evaluate improvements. Specify the baseline, target, and review period before choosing a system.
Note constraints too: snow storage, maintenance access, sight distance, and space for safe deflection can change what works. We often underestimate maintenance. A polished plan can still miss local behavior; revisit the objectives after field review.

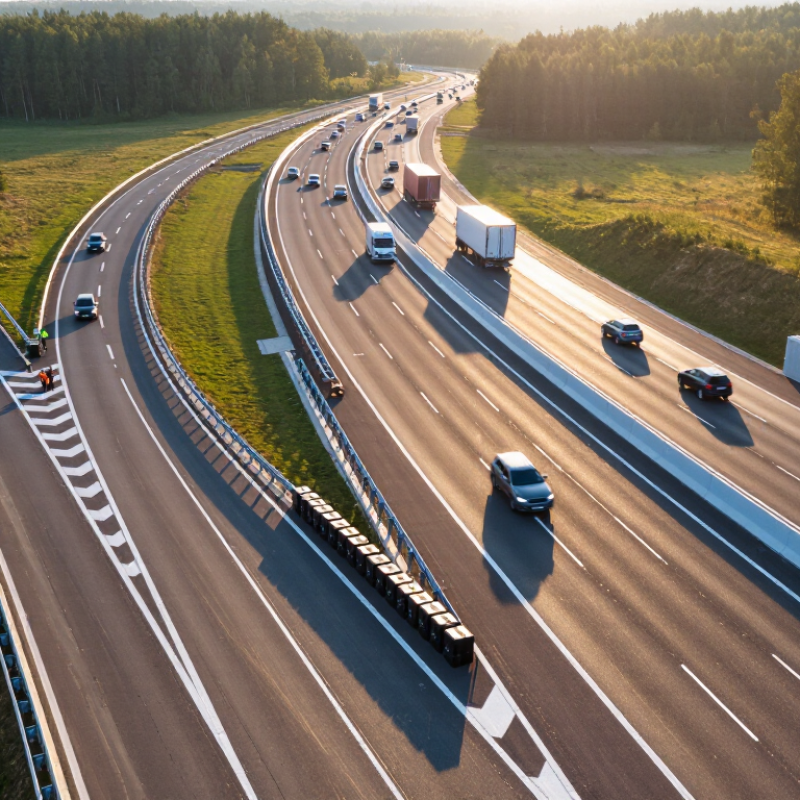

How to Choose Highway Safety Systems for Your Project
Assess Site Conditions, Hazards, and Applicable Standards
Choosing a highway safety system starts with the ground it must protect. Walk the site and note curves, slopes, drainage paths, shoulder width, and nearby fixed objects. A shallow ditch can still affect vehicle stability. Record traffic speed, vehicle mix, and seasonal conditions, too. Field details matter.
Identify where a vehicle could leave the roadway and what it might strike. Consider workers, pedestrians, cyclists, and traffic entering or leaving work zones. Look for exposure points such as a concrete culvert at the end of a narrow shoulder. Photos and measured distances help turn general concerns into practical design information. Still, a site visit can miss changing conditions; rain may reveal drainage problems absent on a dry day.
Check the standards and project requirements that apply to the location and road type. Confirm current agency guidance for barrier use, containment level, working width, terminals, transitions, and clear-zone needs. Requirements vary by jurisdiction, so avoid assuming one detail fits every site. Have qualified design professionals review the selection and supporting documentation. Plans can make a roadside look smooth and predictable. The actual shoulder may be uneven, or a utility may limit placement. Revisit assumptions when field conditions or project limits change.
Assess site conditions, hazards, and applicable standards. MASH Test Levels 1–3 use impact speeds of 50, 70, and 100 km/h, respectively. These speeds are only one part of the test criteria; higher test levels also involve different test vehicles and conditions.
Use the applicable standard and project requirements to determine the appropriate test level. Also evaluate operating speed, roadside hazards, terrain, clear space, drainage, and the consequences of a vehicle leaving the roadway. Source: AASHTO Manual for Assessing Safety Hardware (MASH), 2016.
Highway safety systems perform different jobs, and treating them as interchangeable can leave dangerous gaps. FHWA recorded 18,895 roadway-departure deaths in 2022, underscoring the stakes of roadside design (FHWA, Roadway Departure Safety, 2022). A barrier is useful when it can prevent a worse impact, not simply because a site feels exposed. Start with speed, traffic mix, slope, and available deflection space.
Flexible cable barriers absorb energy through wire movement and need room to deflect; they can suit medians with adequate clearance. Steel-beam barriers deflect less, while concrete barriers are rigid and may fit narrow zones with limited working width. Crash cushions protect isolated hazards such as bridge piers or gore points. Terminals and transitions matter too: a strong rail can still create risk at its exposed end or connection.
Compare each option against the project’s clear zone, foundation, drainage, maintenance access, and expected impact angle. AASHTO’s 2016 Manual for Assessing Safety Hardware evaluates containment, redirection, occupant risk, and post-impact vehicle behavior; check for relevant test-level evidence. Then verify installation details against approved drawings. A few centimeters matter. A comparison table can still miss field realities, so review grading, snow storage, and repair access on site. Revisit assumptions after construction, especially where crews adjusted details.
Compatibility starts with the whole installation, not the barrier alone. Check the proposed rail, terminals, transitions, posts, and foundation against the tested configuration and site conditions. The 2016 AASHTO Manual for Assessing Safety Hardware specifies, for Test Level 3, impacts by both a 1,100-kilogram car and a 2,270-kilogram pickup at 100 km/h and 25 degrees. These test conditions help screen systems for expected vehicle exposure; they do not guarantee identical results at every site. A narrow shoulder or steep slope can change what works. Details matter.
Performance evidence should match the project’s risks. Review test reports for occupant risk, containment, redirection, and debris behavior, then verify the system’s tested limits. FHWA’s Life-Cycle Cost Analysis Primer recommends considering costs across an analysis period, rather than comparing purchase prices alone. Include installation, inspections, repairs, replacement parts, and traffic-management costs during repairs. A damaged terminal beside a busy work zone may create costs that a bid sheet misses. That estimate can be wrong. Repair frequency is uncertain, so document assumptions and test a higher-maintenance scenario. Compare alternatives over the same service period, and check whether crews can source compatible parts years later.
A highway safety system should fit the site, not just the drawing. Before installation, walk the corridor at driver level and note sight lines, drainage, access points, and places where crews must work close to live traffic. FHWA’s 2022 Fatality Analysis Reporting System recorded 891 deaths in work-zone crashes. That figure is a reminder to plan for exposure, not proof that any single device prevents crashes. Small details matter.
Set acceptance criteria before equipment arrives. Record locations, spacing, mounting heights, and power requirements, then compare the installed system with approved plans and manufacturer-independent project specifications. Test detection, communications, alarms, and backup power under daytime and nighttime conditions. Test under traffic. A quiet test site can hide glare, occlusion, or delayed alerts. Document each fault, correction, and retest with dated photos and logs.
Maintenance needs a named owner, inspection schedule, and response time for failures. FHWA work-zone guidance emphasizes maintaining traffic-control devices so they remain effective and visible. After storms, lane shifts, or nearby construction, inspect for tilted signs, blocked sensors, damaged cables, and obscured markings. Keep spare components where practical, but verify compatibility before replacing them. We often budget carefully for installation and too lightly for upkeep; that gap deserves another look. Record recurring faults and use them to adjust inspection intervals.
| System Type | Typical Application | Project Planning Checks | Installation Considerations | Testing and Acceptance | Ongoing Maintenance |
|---|---|---|---|---|---|
| Roadside guardrail | Roadside hazards such as steep slopes, fixed objects, or drop-offs where a barrier is warranted. | Assess the hazard, available clear zone, traffic conditions, shoulder width, drainage, and the space needed behind the rail for deflection. | Install the specified rail, posts, blockouts, connections, and end treatments as a compatible system. Check post foundations and alignment against the approved plans. | Verify materials, layout, height, connections, terminal configuration, and installation records against the project specifications and the road authority’s approved design. | Inspect after reported impacts and during routine road inspections. Check for damaged rail or posts, loose connections, corrosion, blocked drainage, and altered ground conditions. |
| Median cable barrier | Selected divided highways where a flexible barrier can reduce the risk of vehicles crossing the median. | Review median width and slope, underground utilities, drainage, access needs, cable deflection space, and whether the proposed system suits site conditions. | Set posts, cable heights, spacing, anchorages, and tension to the approved system details. Coordinate installation with utility locating and traffic-control plans. | Document post and cable placement, anchorage, cable tension where specified, and any required system checks. Confirm acceptance criteria with the governing agency. | Inspect cables, posts, fittings, and anchorages for impact damage, slack, corrosion, or displacement. Restore the system to its specified condition after a collision or repair. |
| Crash cushion | At fixed hazards such as bridge piers, barrier ends, or other objects that cannot be removed or relocated. | Confirm the hazard location, approach conditions, available footprint, design speed, traffic exposure, and the required containment or redirection performance. | Provide a stable, level foundation where required. Install the complete approved configuration, including anchorage and transitions, without unauthorized substitutions. | Check the installed configuration, orientation, foundation, anchorage, and approach alignment against the approved drawings and project requirements. | Inspect after any known impact and at the intervals required by the road authority. Replace or repair damaged components and confirm the unit is ready for service. |
| Guardrail terminal | At the exposed end of a roadside barrier where a suitable, tested end treatment is required. | Check approach direction, available installation length, roadside grading, clear space, barrier connection details, and compatibility with the adjoining rail. | Follow the approved layout and grading requirements. Keep the terminal’s required clear area free of obstructions and install all components in the specified sequence. | Verify the terminal type, orientation, grading, rail connection, and component placement using the approved plans and acceptance checklist. | Check for impact damage, buried or exposed components, vegetation or debris in the clear area, and changes to grading. Restore the approved layout after repairs. |
| Temporary work-zone barrier | Work zones requiring temporary separation between traffic, workers, or construction activities. | Determine the work-zone layout, traffic speeds, exposure duration, required barrier length, end treatment, access points, and applicable temporary-traffic-control requirements. | Place and connect units as specified, maintain the planned alignment, and provide required transitions and end treatments. Avoid gaps or changes that compromise the approved layout. | Inspect the arrangement before opening to traffic and after shifts or relocations. Record unit connections, alignment, end treatments, and compliance with the traffic-control plan. | Monitor for displaced units, damaged connections, changing work-zone conditions, and debris. Reposition or repair the barrier promptly when inspections identify a problem. |
